B3307 |
67-69 |
BAFFLE - metering block vent |
4.75 |
|
 |
B3800 |
67-69 |
BASE - secondary diaphragm, Holley #3659 |
89.95 |
|
 |

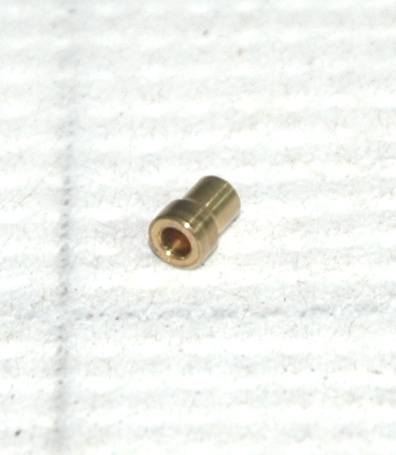

B3547 |
67-69 |
BLEED - main body, Holley #3660, 3888, 4055, 4056 carburetor, air horn area, small 042 (2 req, ea) |
3.25 |
|
 |
B3546 |
67-69 |
BOOSTER - main body, Holley #3660, 3888, 4055, 4056 carburetor (2 req, ea) |
18.95 |
|
 |
B5009 |
67 |
BOWL - center carburetor, Holley #3660, 3888, w/o vent |
169.95 |
|
 |
C3853 |
68-69 |
BOWL - center carburetor, Holley #4055, 4056, w/vent |
139.95 |
|
| |
B4023 |
67-69 |
BOWL SCREW & GASKET KIT - 8pc, does 1 3659 Holley 2 barrel |
7.95 |
|
| |
B4023K |
67-69 |
BOWL SCREW & GASKET KIT - 16pc, services 2 3659 Holley 2 barrel |
CALL |
|
 |
B3311 |
67-69 |
BRACKET - float, in fuel bowl |
1.85 |
|
| |
B3737 |
67-69 |
BUSHING KIT - tri power linkage, 1 large & 2 small bushings, special bolt & locking nut/used at center pivot |
16.95 |
|
 |
B3531 |
67-69 |
BUSHING SET - throttle shaft, to repair worn out throttle shaft holes in base plate, may require reaming of base, brass (2 pc) |
6.00 |
|
 |
B3889 |
67-69 |
CAGE/LEVER - fast idle plastic cam |
21.95 |
|
 |
B3315 |
67-69 |
CAM - accelerator pump on throttle shaft arm, Holley #3660, 4055, red plastic |
4.25 |
|
 |
B3560 |
67-69 |
CAM - accelerator pump on throttle shaft arm, Holley #3888, 4056, white plastic |
4.25 |
|
| |
B3887 |
67-69 |
CAM/ACTUATOR - choke, plastic, RH side of carburetor on stud |
22.95 |
|
 |
B3647 |
67-69 |
CAM KIT - accelerator pump, on throttle shaft arm, allows custom tailoring of accelerator pump response (8 different profiles & colors) |
27.95 |
|
 |
B1572 |
67-69 |
CARBURETOR KIT - Holley #3659, 3x2 end |
42.95 |
|
| |
B0680 |
67-69 |
CARBURETOR KIT - Holley #3660, 3888, 4055, 4056, 3x2 center |
39.95 |
|
 |
B3580 |
67-69 |
CHOKE FLAP KIT - top of carburetor 5pc, Holley list numbers, 3660, 3888, 4055, 4055-1 4056 & 4056-1 |
24.95 |
|
 |
B3968 |
67-69 |
CHOKE KIT - 3660, 3888, 4055, 4055-1, 4056 & 4056-1 Holleys, 15 pc/top and RH side of carburetor |
149.95 |
|
 |
B3888 |
67-69 |
CHOKE PULL-OFF - center carb #3660, 3888, 4055, 4056, as original with curved pipe |
69.95 |
|
| |
B3888S |
67-69 |
CHOKE PULL-OFF - center carb #3660, 3888, 4055, 4056, as original with straight pipe |
49.95 |
|
 |
B4032 |
67-69 |
CHOKE PULL OFF KIT - includes original design choke pull off with curved pipe, choke pull off link and installation screws |
74.95 |
|
 |
B3608 |
67-69 |
COVER - accelerator pump (30 cc), w/beveled screw holes for tapered clutch head screw set #B3772 |
34.95 |
|
 |
B3570 |
67-69 |
COVER - accelerator pump (30 cc), for use w/Phillips non-tapered screw set #B3767 |
14.50 |
|
 |
B3899 |
67-69 |
COVER - secondary diaphragm, all tri-power end carburetor, Holley #3659 |
CALL |
|
 |
B3898 |
67-69 |
DIAPHRAGM - carburetor, secondary, all w/ 3x2, Holley #3659 |
48.95 |
|
 |
B3972 |
67-69 |
DIAPHRAGM KIT - secondary, includes diaphragm, base, cover, spring, link, gasket set, retainer & all required screws (1 kit req per #3659 carburetor) |
CALL |
|
 |
A3843 |
67-69 |
FILTER - fuel, bronze, behind fuel inlet nut (1 req per carb) |
7.95 |
|
 |
B3136 |
67-69 |
FILTER KIT - 3 each, fuel filters, inlet nut gaskets, fuel filter gaskets and fuel filter springs |
23.95 |
|
| |
B3170 |
67-69 |
FITTING - accelerator pump adjusting on lever |
2.65 |
|
 |
B5014 |
67-69 |
FITTING - fuel inlet, Holley 3x2 carburetor, 3/8" inlet size (large) |
9.95 |
|
 |
B3779 |
67-69 |
FITTING - vacuum, connects 2 tri-power end carbs to center, "T" shape |
2.50 |
|
 |
B5012 |
67-69 |
FLAP/PLATE - choke |
13.95 |
|
 |
B5036 |
67-69 |
FLOAT - carburetor, all #3659, 3x2, end |
20.85 |
|
 |
B5037 |
67-69 |
FLOAT - carburetor, all #3660, 3888, 4055, 4056, 3x2, center |
16.85 |
|
 |
B5030 |
67-69 |
FLOAT KIT - Holley tri power carburetor set, 1 center and 2 end carburetor floats |
54.95 |
|
 |
B3568 |
67-69 |
FUEL INLET KIT - 1 tri power carburetor / 5pc, 1 each: fuel inlet fitting / 3/8\", fuel filter & spring and large & small gaskets |
12.95 |
|
 |
B3175 |
67-69 |
GASKET - fuel inlet, large |
1.65 |
|
 |
B3177 |
67-69 |
GASKET - fuel filter, small |
1.10 |
|
| |
B4028 |
67-69 |
GASKET - main body to base plate, Holley end 3x2'S, 3659'S |
3.15 |
|
 |
B4076 |
67-69 |
GASKET - main body to base plate, center carburetor, 3660, 3888, 4055, 4055-1, 4056, 4056-1 |
3.65 |
|
 |
B3543 |
67-69 |
GASKET - metering plate (die cast) to metering plate, steel |
2.65 |
|
 |
B4070 |
67-69 |
GASKET - power valve |
1.25 |
|
 |
B0162 |
67-69 |
GASKET SET - carburetors to air cleaner (3 pc) |
12.95 |
|
 |
B3541 |
67-69 |
GASKET SET - bowl to metering block (2 pc) |
3.50 |
|
| |
Z4076 |
69-71 |
GASKET SET - 3x2 carburetor bodies to base plate, 1 center & 2 end carburetors (3 pc.) |
9.95 |
|
 |
B0606 |
67-69 |
GASKET SET - 3x2 carburetors to intake (3 pc) |
10.95 |
|
 |
B3561 |
67-69 |
GASKET SET - fuel bowl screws (8 pc) |
4.35 |
|
 |
B3862 |
67-69 |
GASKET SET - idle air screws (2 pc) |
1.65 |
|
 |
B3515 |
67-69 |
GASKET SET - metering block to main body (2 pc) |
2.95 |
|
 |
B4074 |
67-69 |
GASKET SET - nozzle squirter (2 pc) |
1.65 |
|
 |
B5038 |
67-69 |
GASKET SET - secondary diaphragm housing base to #3659 carburetor body (2 pc) |
1.95 |
|
 |
B4072 |
67-69 |
GASKET SET - sight plugs (2 pc) |
1.65 |
|
 |
B3544 |
67-69 |
GASKET SET - steel metering plate to main body (2 pc) |
3.25 |
|
 |
B5015 |
67-69 |
GUIDE - choke rod, 3x2 center carburetor, white plastic |
2.05 |
|
 |
B3650 |
67-69 |
HOSE KIT - tri-power carbs, end carburetors to center, & choke pull-off, w/"T" fitting |
10.65 |
|
 |
B3648 |
67 |
JET SET - Holley #3660 (pr) |
7.95 |
|
 |
B3654 |
67-69 |
INSTALLATION KIT - needle & seats, 10pc |
16.95 |
|
 |
B3583 |
67-69 |
INSULATOR KIT - 3 TRI POWER CARBS to intake manifold..includes 3 1/4" phenolic insulators, 12 studs with lock washers & nuts and 6 installation gaskets |
159.95 |
|
 |
B3649 |
67 |
JET SET - Holley #3888 (pr) |
7.95 |
|
 |
B3634 |
68-69 |
JET SET - Holley #4055 (pr) |
7.95 |
|
| |
C3621 |
68-69 |
JET SET - Holley #4056 (pr) |
7.95 |
|
 |
B3894 |
67-69 |
LEVER - accelerator pump, on stud |
5.95 |
|
 |
B4075 |
67-69 |
LEVER - accelerator pump cover |
2.95 |
|
 |
B3890 |
67-69 |
LEVER - choke control, screws to throttle shaft, contacts plastic cam, RH |
17.95 |
|
| |
B3747 |
68-69 |
LEVER/ARM - bowl vent, Holley #4055, 4056 |
19.95 |
|
 |
B3891 |
67-69 |
LINK - fast idle cam cage to choke pull-off |
7.45 |
|
 |
B5020 |
67-69 |
LINK - secondary diaphragm, on throttle shaft, RH, each |
21.95 |
|
 |
B5085 |
67-69 |
LINK & SCREW SET - link on end of throttle shaft w/screw, all end carburetors, 2 of each, 4pc |
39.95 |
|
| |
B5984 |
67-69 |
MAIN BODY - machined, w/o bleeds or booster, Holley #3659, 3661 |
145.00 |
|
| |
B3524 |
67-69 |
METERING BLOCK - front, Holley #3660, 4055 |
70.95 |
|
| |
B3516 |
67-69 |
METERING BLOCK - front, Holley #3888, 4056 |
81.95 |
|
| |
B3652 |
67-69 |
METERING BLOCK - front, Holley #3660, 4055, stamped #5062 |
149.95 |
|
| |
B3653 |
67-69 |
METERING BLOCK - front, Holley #3888, 4056, stamped #5257 |
149.95 |
|
| |
B0608 |
67-69 |
METERING PLATE - fuel, Holley #3659 secondary carburetor, die cast |
39.95 |
|
 |
B3391 |
67-69 |
METERING PLATE - fuel, thin steel, all w/die cast front metering plate |
6.25 |
|
 |
B1543 |
67-69 |
NEEDLE & SEAT SET - w/adjustable float (ea) |
9.95 |
|
| |
B3318 |
67-69 |
NEEDLE VALVE - pump discharge nozzle |
1.80 |
|
| |
B3313 |
67 |
NOZZLE - pump discharge, Holley #3660 |
11.45 |
|
| |
B3563 |
68-69 |
NOZZLE - pump discharge, Holley #3888, 4055, 4056 |
8.95 |
|
| |
B4025 |
67-69 |
NUT - needle & seat height locking |
1.85 |
|
| |
B3301 |
67-69 |
PIN - float to bracket |
1.65 |
|
| |
B3598 |
67-69 |
PLATE SET - throttle shaft, Holley #3659, 3661, aluminum (2 pc) |
70.25 |
|
| |
B3651 |
67-69 |
PLATE SET - throttle shaft, Holley #3660, 3888, 4055, 4056, center carburetor (2 pc) |
16.95 |
|
 |
B3990 |
67-69 |
PLUG/SCREW - fuel bowl, to check fuel level |
2.85 |
|
 |
B3551 |
67-69 |
PLUG - metering block wells, 1/4", all Holley carburetors |
1.25 |
|
 |
B3551K |
67-69 |
PLUG SET - metering block wells, 1/4", all Holley carburetors, 10PC |
7.45 |
|
 |
B4079 |
67-69 |
POWER VALVE - Holley 3x2 center carburetor, metering block |
7.95 |
|
 |
B3507 |
67-69 |
PUMP - accelerator (30 cc) |
7.95 |
|
| |
B3646 |
67-69 |
RETAINER - accelerator pump arm to cover |
1.25 |
|
 |
B3896 |
68-69 |
RETAINER - bowl vent lever, original |
6.25 |
|
| |
B3174 |
67-69 |
RETAINER/"E" CLIP - accelerator pump lever, choke cam & cage shaft |
1.25 |
|
| |
B3896U |
68-69 |
RETAINER - bowl vent lever |
3.95 |
|
| |
B3356 |
67-69 |
RETAINER/"E" CLIP - secondary diaphragm rod to link |
1.25 |
|
| |
B5021 |
67-69 |
ROD - choke shaft to choke plastic cam cage/lever |
14.95 |
|
| |
B3172 |
67-69 |
SCREW - accelerator pump adjusting on lever |
3.25 |
|
| |
B3354 |
67-69 |
SCREW - air/fuel mixture |
3.75 |
|
| |
B3317 |
67-69 |
SCREW - accelerator pump cam retainer, on accelerator lever |
1.55 |
|
| |
B3325 |
68-69 |
SCREW - bowl vent lever retainer |
1.25 |
|
| |
B3769 |
67-69 |
SCREW - fast idle |
1.65 |
|
| |
B4077 |
67-69 |
SCREW - fuel bowl, 20" length, original, replated (ea) |
CALL |
|
| |
B4078 |
67-69 |
SCREW - fuel bowl, 25" length, original, replated (ea) |
2.95 |
|
 |
B0615 |
67-69 |
SCREW - lever to throttle shaft, RH side (ea) |
1.65 |
|
| |
B3392 |
67-69 |
SCREW - needle & seat height adjusting |
1.95 |
|
| |
B3309 |
67-69 |
SCREW - pump discharge nozzle |
1.95 |
|
| |
B3767 |
67-69 |
SCREW SET - accelerator pump (30 cc) cover, Phillips head, 3/8" long, used on B3570 cover (4 pc) |
3.65 |
|
 |
B3772 |
67-69 |
SCREW SET - accelerator pump (30 cc) cover, tapered clutch head, 3/8" long (4 pc), used on cover B3508 |
1.15 |
|
| |
B3173 |
67-69 |
SCREW SET - base to main body |
5.95 |
|
| |
B3872 |
67-69 |
SCREW SET - choke flap (2 pc) |
1.65 |
|
| |
B3957 |
67-69 |
SCREW SET - choke pull-off retaining (2 pc) |
2.95 |
|
| |
B3305 |
67-69 |
SCREW SET - float bracket retaining (2 pc) |
1.85 |
|
| |
B3535 |
67-69 |
SCREW SET - fuel bowl, current design, 20", Holley #3659 current design (4 pc) |
7.95 |
|
| |
B3883 |
67-69 |
SCREW SET - fuel bowl, #3660, 3888, 4055, 4056, Holley, 25", current design (4 pc) |
7.95 |
|
 |
B4026 |
67-69 |
SCREW SET - metering plate to main body, Holley #3659, clutch head (6 pc) |
6.95 |
|
| |
B3550 |
67-69 |
SCREW SET - throttle body to carburetor main body (5 pc) |
3.65 |
|
| |
B3530 |
67-69 |
SCREW SET - throttle plates to shaft (8 pc) |
4.50 |
|
| |
B3502 |
67-69 |
SCREW SET - vacuum secondary diaphragm base to Holley #3659 carburetor body (4 pc) |
4.95 |
|
| |
B3500 |
67-69 |
SCREW SET - vacuum secondary diaphragm cover to base, Holley #3659 (6 pc) |
3.75 |
|
 |
B3480 |
68-69 |
SEAL - bowl vent, rubber, snaps into bowl vent lever |
1.65 |
|
 |
B3884 |
67-69 |
SHAFT - choke flap/plate |
21.25 |
|
| |
B3321 |
67-69 |
SHAFT ASSEMBLY - throttle, w/lever, Holley #3659 |
79.95 |
|
| |
B3359 |
67 |
SHAFT ASSEMBLY - throttle, w/lever, Holley #3660, 3888 |
CALL |
|
| |
C3875 |
68-69 |
SHAFT ASSEMBLY - throttle, w/lever, Holley #4055, 4056 |
CALL |
|
| |
B3171 |
67-69 |
SPRING - accelerator pump adjusting on lever |
2.75 |
|
| |
B3355 |
67-69 |
SPRING - accelerator pump diaphragm |
1.65 |
|
| |
B3621 |
68-69 |
SPRING - bowl vent lever, Holley #4055, 4056 |
2.85 |
|
| |
B3953 |
67-69 |
SPRING - fast idle screw |
1.95 |
|
| |
B3617 |
67-69 |
SPRING - float |
2.45 |
|
 |
B3176 |
67-69 |
SPRING - fuel filter, in front bowl |
2.95 |
|
| |
B5078 |
67-69 |
SPRING - secondary diaphragm, Holley #3659 |
4.50 |
|
| |
B3545 |
67-69 |
SPRING - secondary diaphragm, Holley #3659, hi-perf |
4.50 |
|
 |
B5006 |
67-69 |
SPRING KIT - secondary diaphragm, 7 springs for adjusting accelerator response |
32.95 |
|
| |
B3768 |
67-69 |
STUD - accelerator pump lever, on base plate, LH front |
2.50 |
|
| |
B3538 |
67-69 |
STUD - choke cam & cage, presses into main body, RH |
19.95 |
|
| |
B3528 |
67-69 |
TUBE - bowl vent air horn, front, short (angle cut) |
2.85 |
|
| |
B3511 |
67-69 |
TUBE - vacuum hose on RH side, all 3x2 carbs/base 3x2 centers |
3.50 |
|
Holley 2-Barrel Tri-Power Carburetors - Corvette
