A3387 |
56-61 |
ACCELERATOR PUMP ASSEMBLY - with fluorelastomer cup/alcohol resistant |
19.45 |
|
 |
A3341 |
56-61 |
ACCELERATOR PUMP ASSEMBLY - with leather pump cup |
16.75 |
|
| |
A3878 |
56-57E |
AIR VALVE - secondary throttle bore,225/245hp, short arm, thin
weight, w/throttle plate & screws (pr) |
162.50 |
|
 |
A3879 |
57L-61 |
AIR VALVE- secondary throttle bore, 245hp, short arm, large weight, w/throttle plate & screws (pr) |
162.50 |
|
 |
A3880 |
58L-61 |
AIR VALVE- secondary throttle bore, 270hp, short arm, thin weight, w/throttle plate & screws/used starting January 1958, pr |
162.50 |
|
 |
A3778 |
56-61 |
BRACKET - metering rods / wcfb |
8.95 |
|
 |
A3947 |
56-61 |
CARBURETOR KIT- all w/dual quads (2 reg) (ea) |
63.95 |
|
| |
A3717 |
56 |
CARBURETOR SUPER KIT- carter WCFB #2362/2419, services both carburetors - includes metering rods and jets |
237.85 |
|
| |
A3721 |
57-61 |
CARBURETOR SUPER KIT- carter WCFB #2626/2627 or #2627/3181, 2x4, 245hp, services both carburetors - includes metering rods and jets |
237.85 |
|
| |
A3723 |
58L-61 |
CARBURETOR SUPER KIT - Carter WCFB #2613/2614 or #2614/3182,
2x4, 270hp, services both carburetors - includes metering rods
and jets |
237.85 |
|
 |

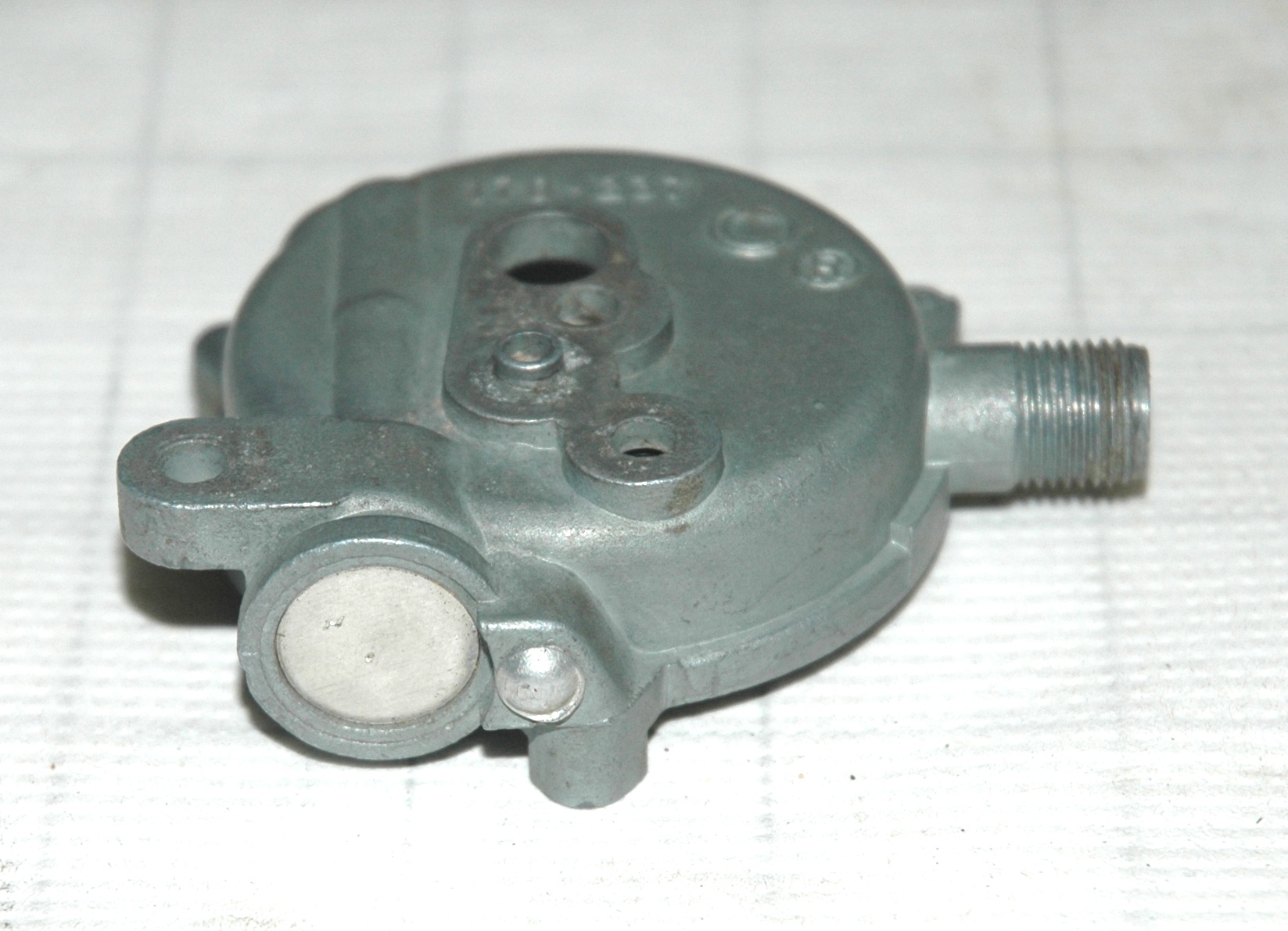

A3333 |
56E |
CHOKE BASE/HOUSING - original/reconditioned |
79.95 |
|
| |
A3821 |
56L |
CHOKE BASE/HOUSING - w/side provision for heat tube
(orig./recond.) |
79.95 |
|
 |
A3891 |
56-61 |

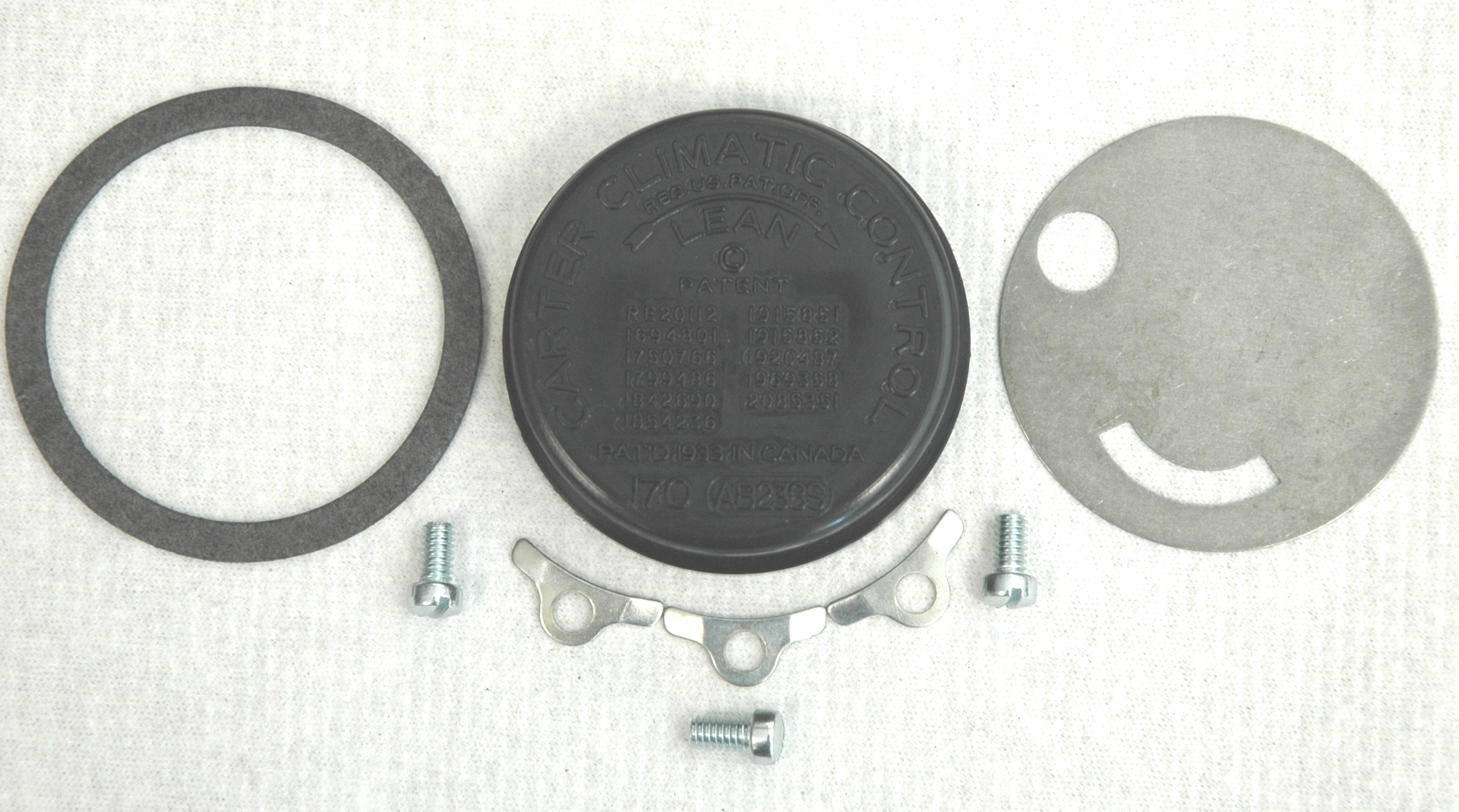

CHOKE COVER - Carter #AB238S, (all 2x4 as OEM) (correct as
original) |
33.95 |
|
 |
A0099 |
56L-61 |
CHOKE KIT - choke base w/ cover, choke cross shaft, piston &
link, butterfly & installation hardware, as original |
134.95 |
|
 |
A3960 |
56-61 |
CHOKE LINKAGE KIT - LH side of carburetor from base plate to
choke shaft, links, cam, dog legs, rod & lock out, (7 pc) |
81.95 |
|
| |
A3994 |
56 |
CLAMP/RETAINER - left end of choke shaft, w/screw, (orig./recond.) |
16.95 |
|
 |
A4088 |
56-61 |
COVER - metering rods, WCFB 4 barrel w/pop up vent, used |
29.95 |
|
 |
A3715 |
56 |
FITTING - rear carburetor vacuum take-off |
16.25 |
|
 |
A3714 |
58-61 |
FITTING - rear carburetor vacuum take-off hex head w/pipe for windshield washer vacuum / automatic transmission |
21.55 |
|
 |
A3837 |
56-61 |
FLOAT - front, WCFB carburetor, (orig./recond.) guaranteed |
59.95 |
|
 |
A3887 |
56-61 |
FLOAT - rear w/saddle, WCFB, carburetor, (orig./recond.),
guaranteed |
52.95 |
|
 |
A3887K |
56-61 |
FLOAT KIT - one with and one without saddle, brass, original, tested |
99.95 |
|
 |
A3703 |
56-61 |
GASKET - carburetor to intake, 2x4 WCFB |
8.25 |
|
 |

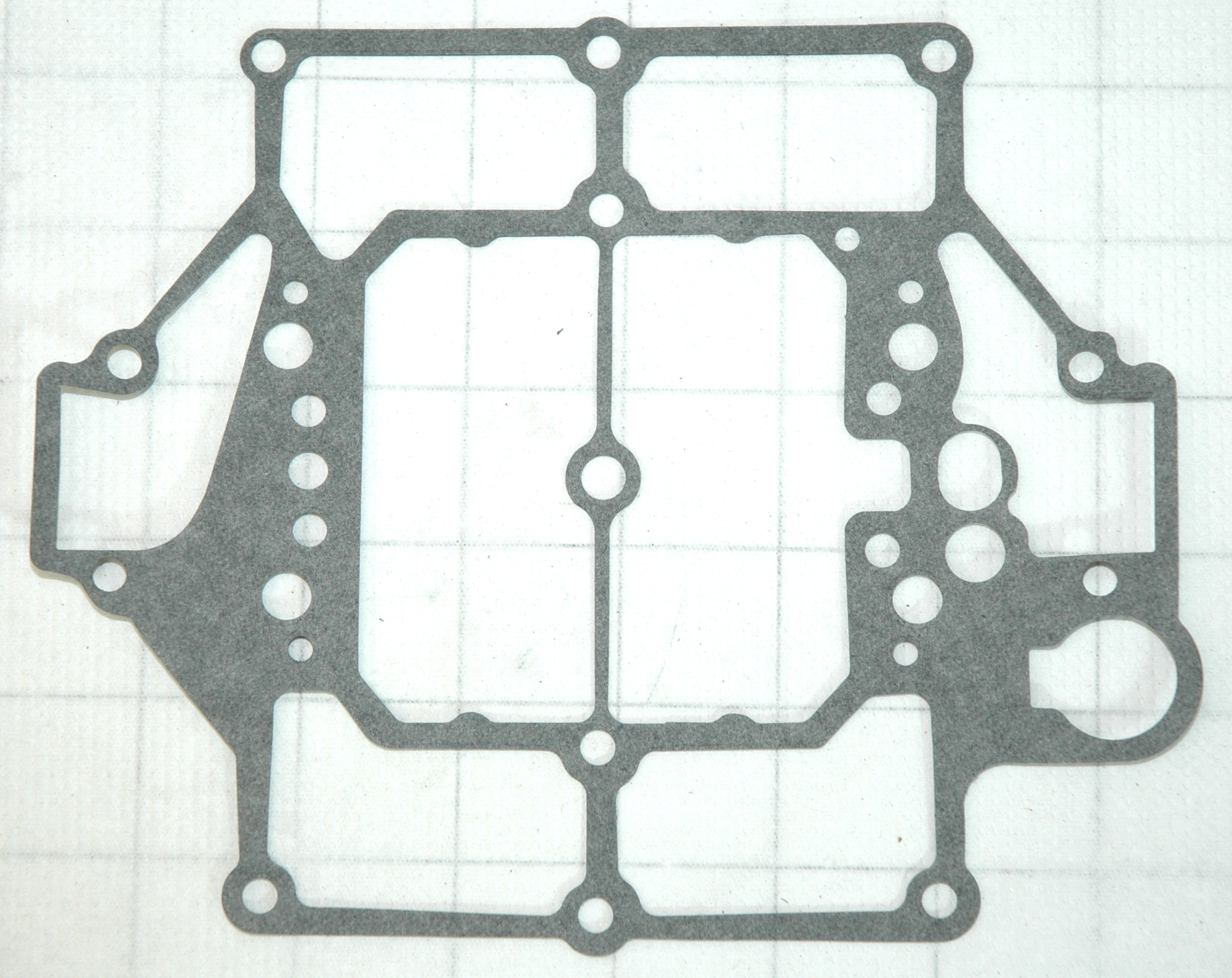

A3693 |
56-61 |
GASKET - lid/top to wcfb main body |
5.95 |
|
 |
A0100 |
56-61 |
GASKET SET - dual quad carburetors to air cleaners (pr) |
13.95 |
|
| |
A3881 |
56-61 |
GASKET- choke cover, WCFB |
36.00 |
|
 |

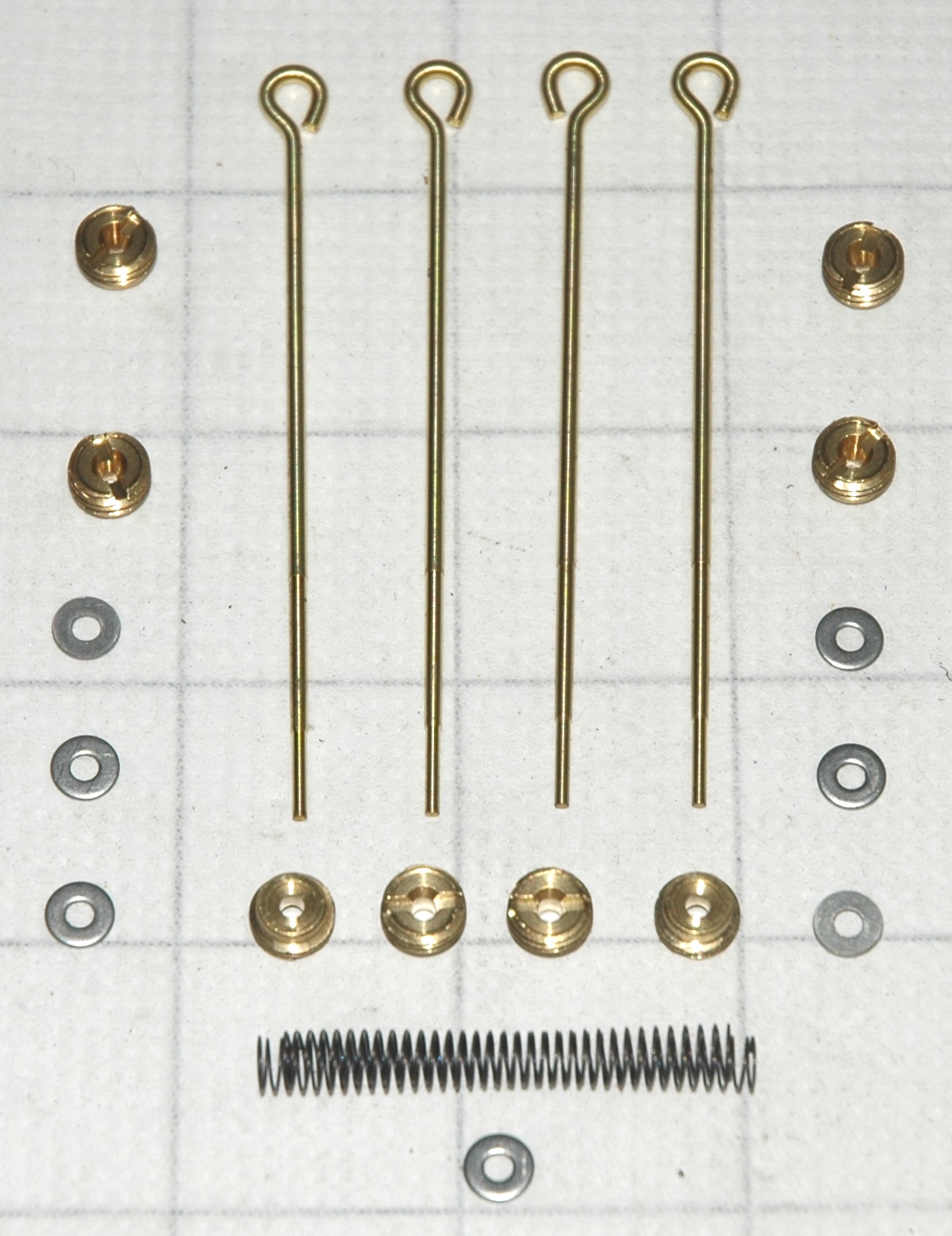

A3987 |
56 |
METERING ROD & JET KIT - 2 dual quad carburetors, 225hp
(includes: 4 metering rods, 8 jets & 2 springs) |
109.95 |
|
 |
A3958 |
57-61 |

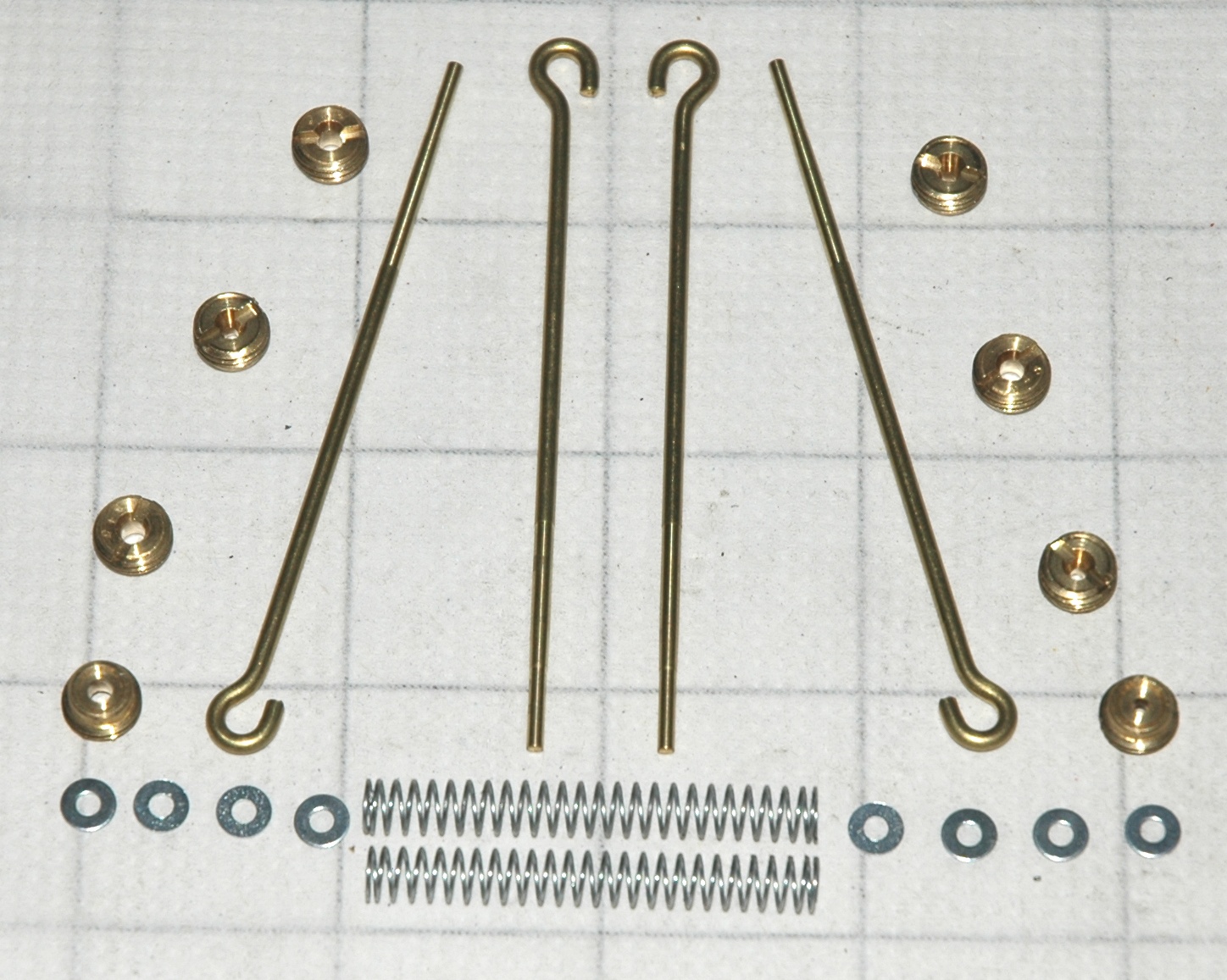

METERING ROD & JET KIT - 2 dual quad carburetors, 245hp,
(includes: 4 metering rods, 8 jets & 2 springs) |
129.95 |
|
 |
A3789 |
57-61 |
METERING ROD & JET KIT - 2 dual quad carburetors, 245hp, (includes: 4 metering rods, 8 jets & 2 springs/FOR USE AT HI ALTITUDES-5000+ FEET ABOVE SEA LEVEL |
119.95 |
|
 |

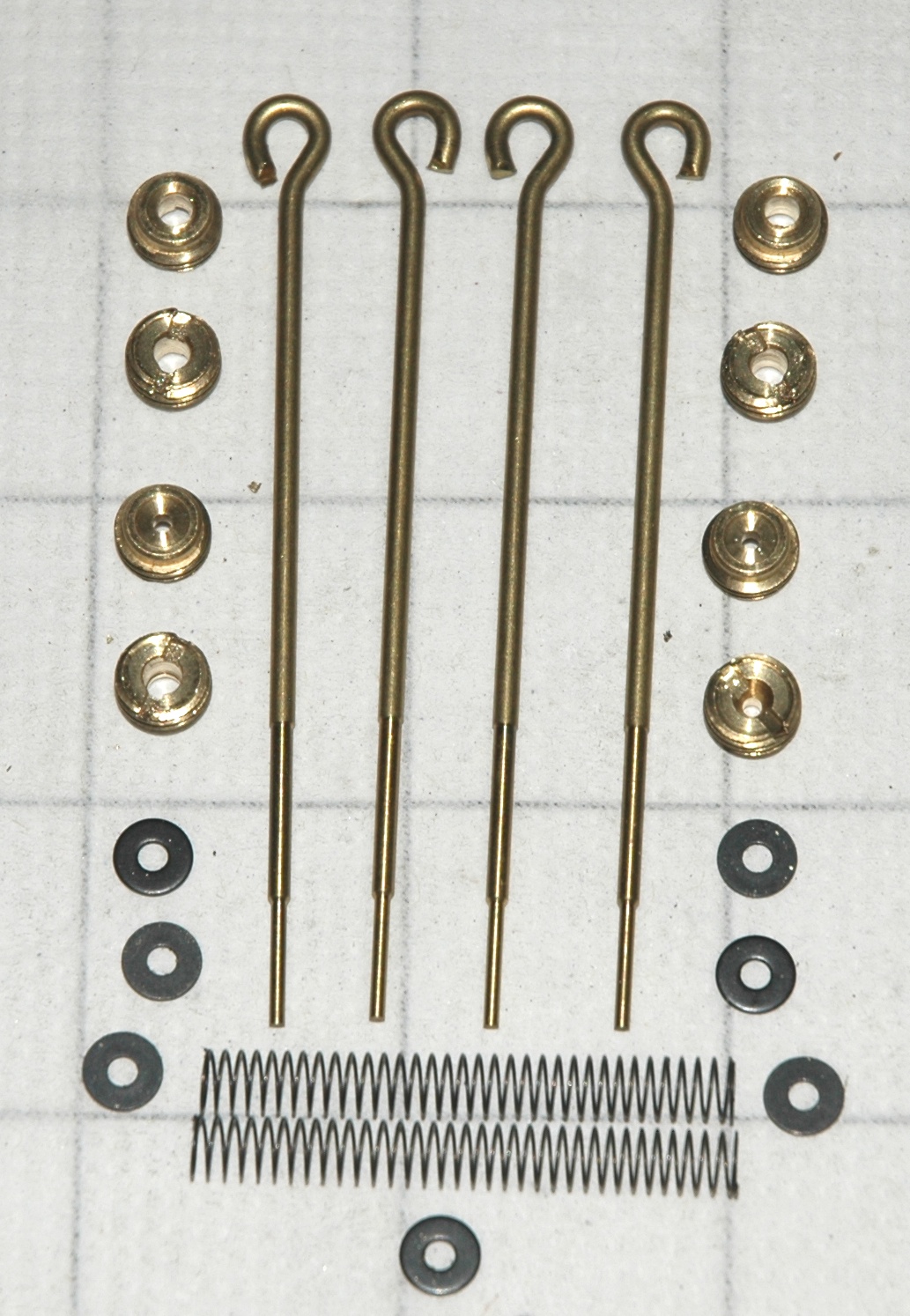

A3959 |
58L-61 |
METERING ROD & JET KIT - 2 dual quad carburetors, 270hp,
(includes 4 metering rods, 8 jets, 4 washers & 2 springs) |
129.95 |
|
 |
A1533 |
56-61 |
NUT - hex, carburetor top, Carter/ WCFB aluminum |
15.95 |
|
 |
A3554 |
56-61 |
PLATE SET - w/screws, auxiliary air valves, all w/2x4 |
22.95 |
|
| |
A4085 |
56-61 |
PLUG SET - aluminum, WCFB base plate, (2 pc) |
6.50 |
|
 |

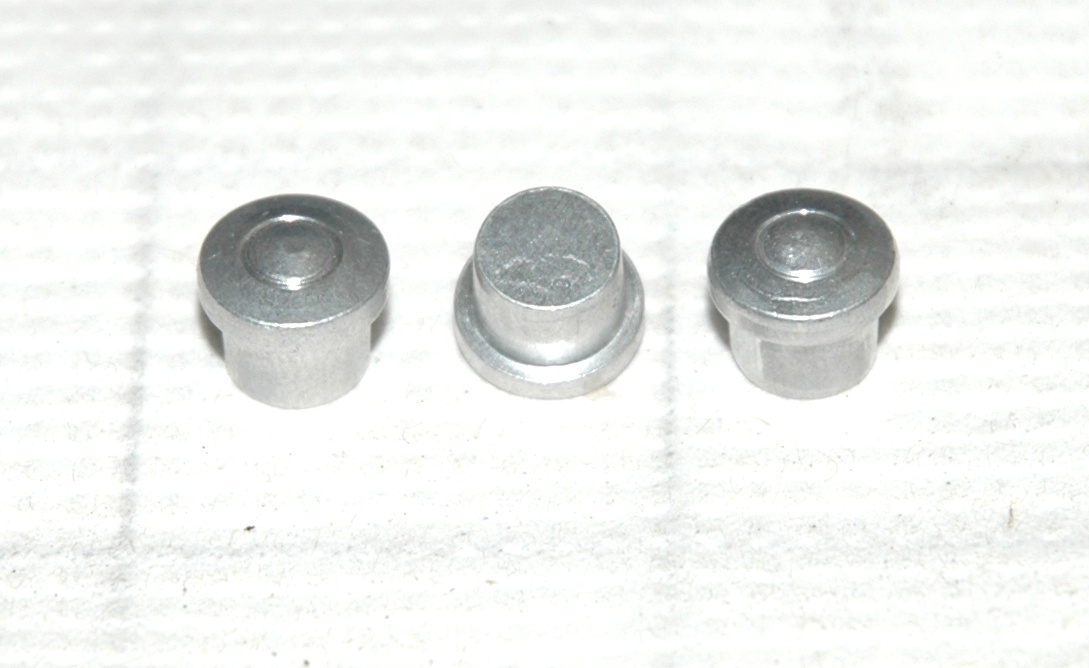

A4087 |
56-61 |
PLUG SET - aluminum, WCFB lid/cover, (3 pc) |
CALL |
|
 |
A4086 |
55-61 |
PLUG SET - aluminum, WCFB main body, large and small sizes,
Included |
9.95 |
|
 |

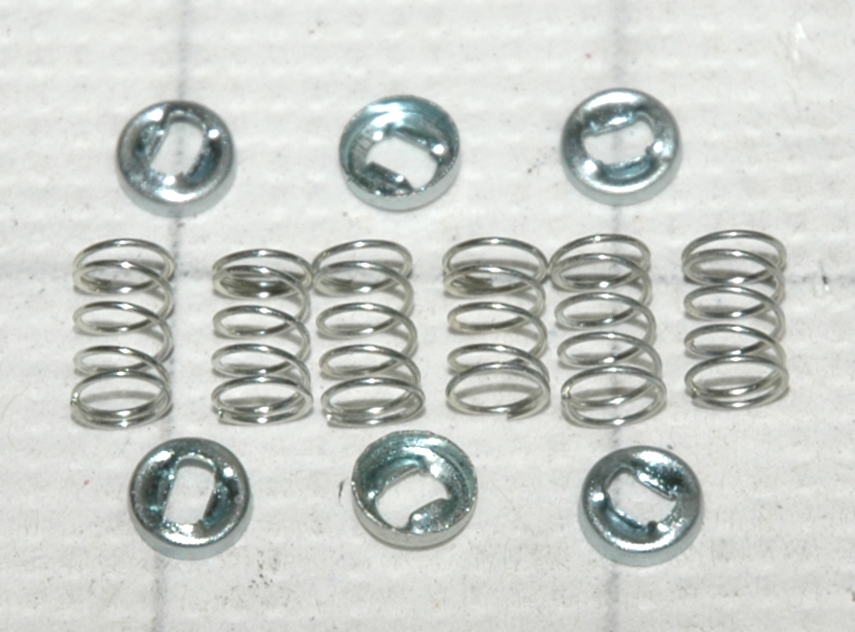

A0029 |
56-61 |
RETAINER/CLIP & SPRING KIT - fastens link & rods (12pc) (round
push on & twist retainers) |
CALL |
|
 |
A3697 |
56-61 |

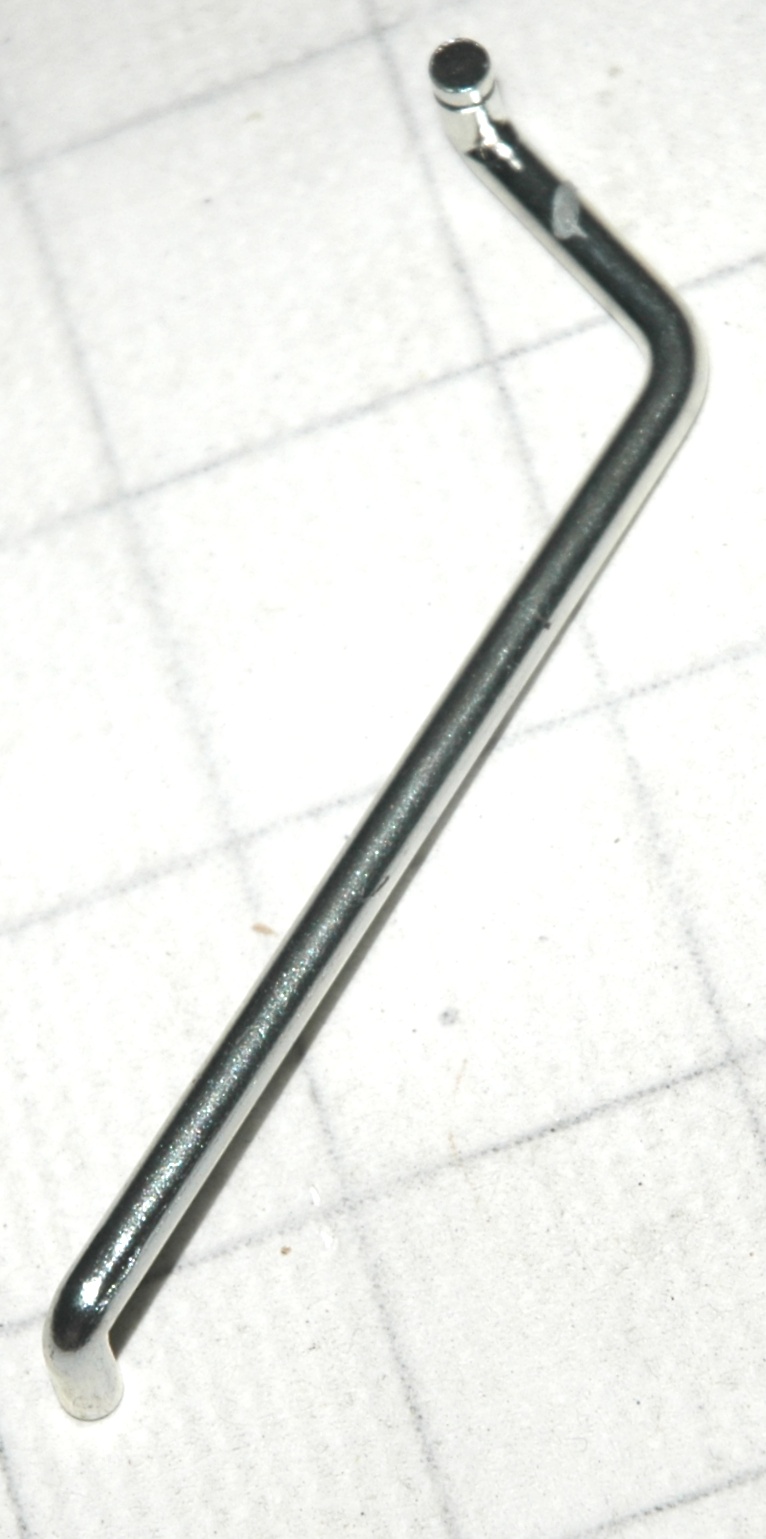

ROD - accelerator pump |
10.95 |
|
 |
A3692 |
56-61 |
ROD - choke LH - from choke shaft to lockout |
10.95 |
|
 |
A4001 |
56-57E |
SCREW & SPRING - idle air in base LH/rear side |
CALL |
|
 |
A3505 |
56-61 |
SCREW - idle fuel mixture adjusting, long brass, (2 req. per carb.) |
8.95 |
|
 |
A3849 |
56-61 |
SCREW KIT - Phillister head type, replaces all Phillister
screws on WCFB carb. (1 set required per carb) |
10.50 |
|
| |
A4103 |
56-61 |
SCREW SET - choke base to carburetor air horn, phillister screws, 2 piece |
1.00 |
|
 |
A3864 |
56-61 |

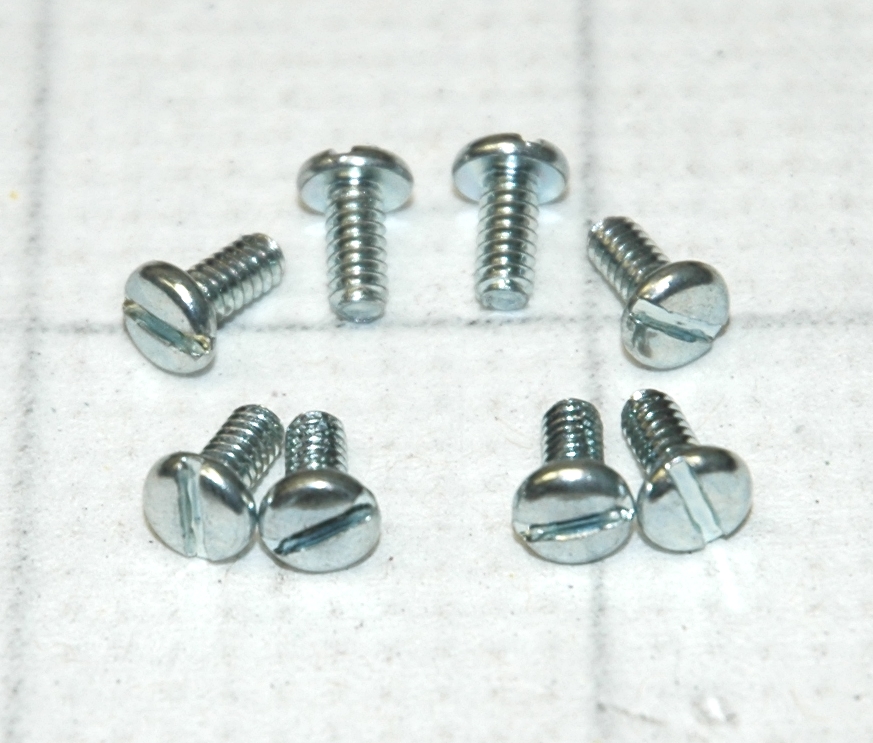

SCREW SET - throttle shaft butterflies, AFB/WCFB, (8 pc) |
4.95 |
|
 |

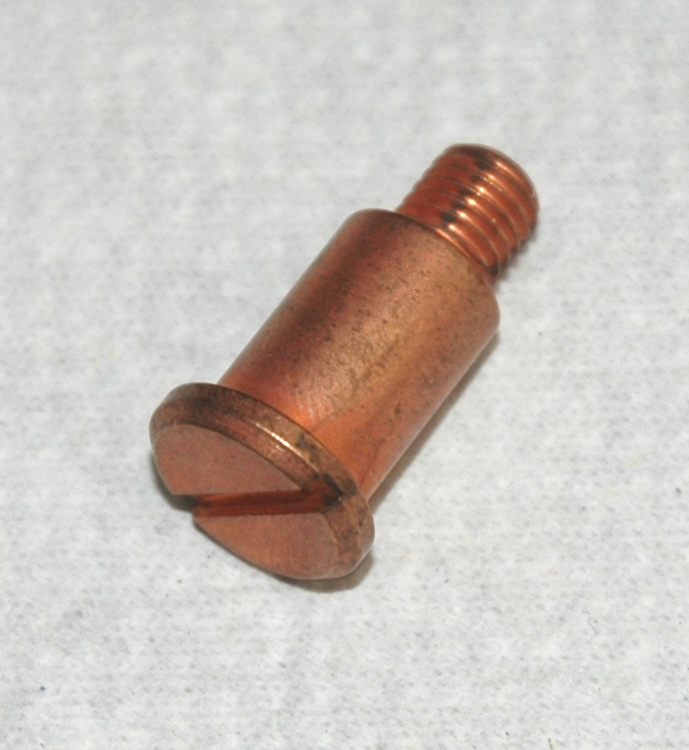

A4027 |
55-61 |
SCREW/CHOKE - lock out cam, LH side of carburetor, w/shoulder |
13.50 |
|
 |
A0043 |
56-61 |
SCREW - fast idle on LH front side of carburetor/opens primary throttle shaft |
5.95 |
|
| |
5254FC |
57-61 |
SERVICE BULLETIN - CARTER WCFB dual quads, 2626S, 2627S, 3181S, REPRINT OF ORIGINAL |
9.95 |
|
 |
A3977 |
57-61 |
SHAFT / REAR THROTTLE - all dual quad secondary/front carburetors, Carter numbers: 2419s, 2626s, 2613s, 3181s & 3182s |
55.95 |
|
 |
A3978 |
57-61 |
SHAFT / REAR THROTTLE - all dual quad primary/rear carburetors, Carter numbers: 2362s, 2627s, & 2614s |
55.95 |
|
 |
A0028 |
57-61 |
SHAFT & ARM SET - main shaft front & rear carb/stamped 819 &
820 w/o throttle plates & screws (2 pc) |
212.95 |
|
 |
A3898 |
57-61 |
SHAFT & ARM W/O THROTTLE PLATES & SCREWS - secondary carburetor,
throttle, front dual quad, stamped #819, (short arm) |
119.95 |
|
 |
A3899 |
57-61 |
SHAFT & ARM W/O THROTTLE PLATES & SCREWS- primary carburetor,
throttle, rear dual quad, Stamped #820, (long arm) |
119.95 |
|
| |
A3979 |
56-61 |
SHAFT - choke, link, piston & butterfly (insert in choke base)
used |
55.00 |
|
| |
A3673 |
56-61 |
SPLASH SHIELD KIT - metering rods - 10pc |
4.95 |
|
 |
A3728 |
56-61 |
SPRING - accelerator return, 2x4, front |
12.95 |
|
 |
A3730 |
56-61 |
SPRING - accelerator return, 2x4, rear |
12.95 |
|
| |
A3973 |
56-61 |
SPRING - fast idle cam, LH |
6.50 |
|
 |
A3450 |
56-61 |
SPRING - under accelerator pump |
7.75 |
|
 |
A3440 |
56-61 |
SPRING - under metering rod piston |
6.95 |
|
 |
A0047 |
56-61 |
SPRING SET - metering rods, WCFBs, pr |
14.95 |
|
| |
A3955 |
56-61 |
STAND KIT - carburetor, elevates carburetor 2\' to facilitate
servicing it, throttle shafts easily open, (4 pc.) |
12.95 |
|
 |
A3780 |
55-61 |
STRAINER - fuel, WCFB 1x4, under 3/4 aluminum nut on
carburetor lid |
2.95 |
|
 |
A3845 |
56-61 |
STUD & NUT KIT - carburetor to intake, all w/2x4, (16 pc) |
21.25 |
|
 |
A3625 |
56-62 |
THERMOSTAT SPRING - choke, inserts in choke cover |
10.95 |
|
 |
A3360 |
56L |
Top/lid dual quad carburetor 6-1156 casting w/provision for
choke |
450.00 |
|
| |
A4895 |
57 |
TOP - dual quad carburetor 6-1203 casting w/provision for choke |
CALL |
|
| |
A3752 |
56-61 |
TUBE - choke, 2x4 engine |
14.25 |
|
 |
A3708 |
56-61 |
VENT TUBE - brass, front, (either carb), 2x4, (ea) |
14.95 |
|
 |
A3710 |
56-61 |
VENT TUBE - brass, rear, (either carb), 2x4, (ea) |
15.25 |
|
 |

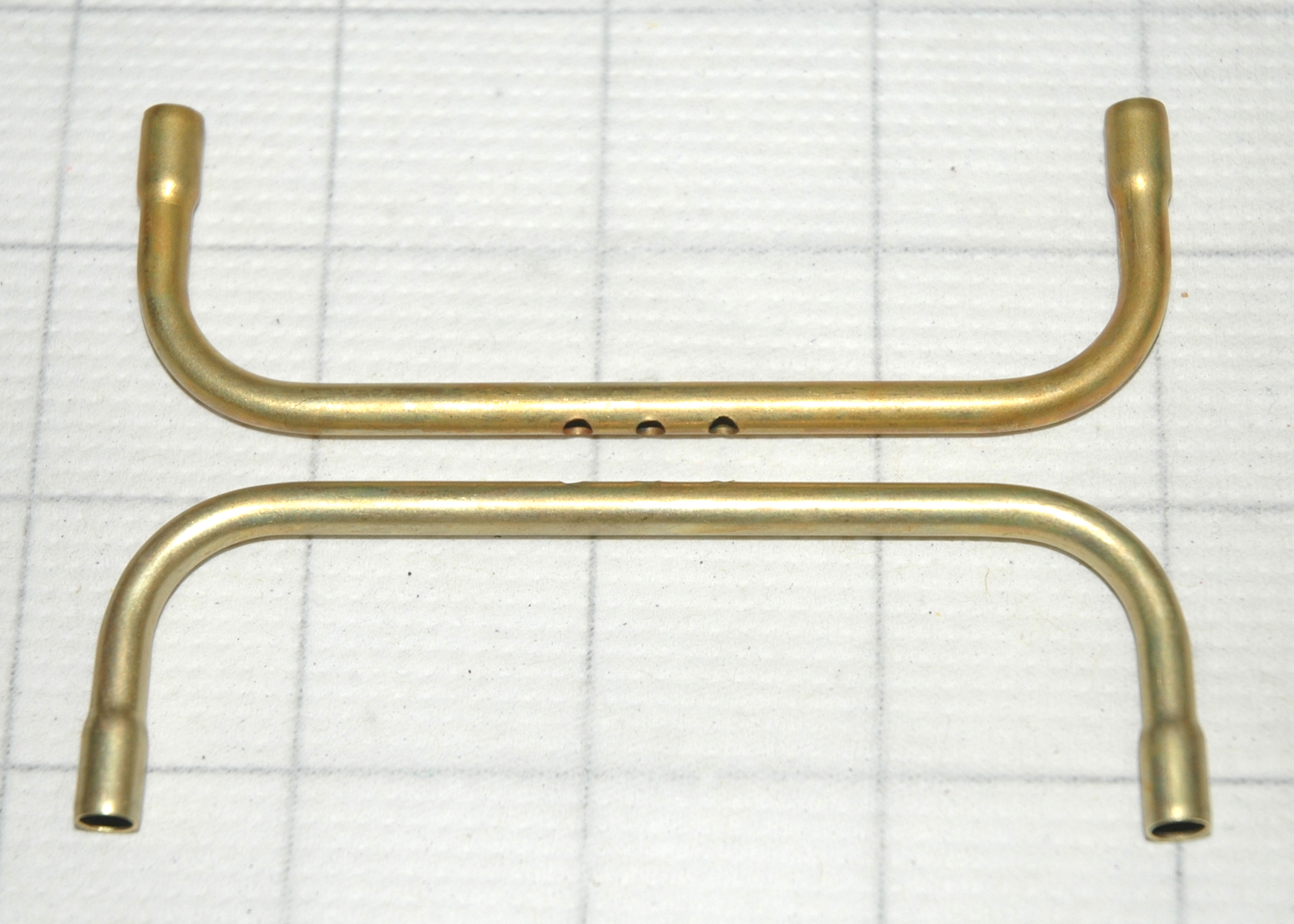

A3708X |
56-61 |
VENT TUBE KIT - Brass - does 1 carburetor (2pc) |
31.95 |
|
 |
A0055 |
56-61 |
VENT TUBE SET - Brass - does 2 carburetors (4pc) |
59.95 |
|
Carter WCFB - Dual Quad 4 Barrels (2x4) - Chevrolet
